TIM-3 Antibody / HAVCR2

• Catalog Number: orb699790
• Category: Antibodies
• Description: TIMs are type I transmembrane glycoproteins with one Ig-like V-type domain and a Ser/Thr-rich mucin stalk. TIM-3 is expressed on the surface of effector T cel tonsil, lymph node or spleen. ls (CD4+Th1 and CD8+Tc1) but not on helper T cells (CD4+Th2 and CD8+Tc2). In chronic inflammation, autoimmune disorders, and some cancers, TIM-3 is upregulated on several other hematopoietic cell types. The Ig domain of TIM-3 interacts with a ligand on resting but not activated Th1 and Th2 cells. The glycosylated Ig domain of TIM-3 binds cell-associated galectin-9. This induces TIM-3 Tyr phosphorylation and pro-apoptotic signaling. TIM-3 functions as a negative regulator of Th1 cell activity. Its blockade results in increased IFN-gamma production, Th1 cell proliferation and cytotoxicity, regulatory T cell development, and increases in macrophage and neutrophil infiltration into sites of inflammation.
• Clonality: Monoclonal
• Species/Host: Mouse
• Isotype: Mouse IgG2c, kappa
• Conjugation: Unconjugated
• Reactivity: Human
• Immunogen: A portion of amino acids 22-202 from the human protein was used as the immunogen for the TIM3 antibody.
• UniProt ID: Q8TDQ0
• Tested applications: IHC-P, WB
• Dilution range: Western blot: 1-2ug/ml,Immunohistochemistry (FFPE): 1-2ug/ml for 30 minutes at RT
• Application notes: Optimal dilution of the TIM3 antibody should be determined by the researcher.
• Antibody Type: Primary Antibody
• Clone Number: TIM3/4029
• Formula: 0.2 mg/ml in 1X PBS with 0.1 mg/ml BSA (US sourced), 0.05% sodium azide
• Storage: Maintain refrigerated at 2-8°C for up to 2 weeks. For long term storage store at -20°C in small aliquots to prevent freeze-thaw cycles.
• Research Area: Epigenetics, Immunology
• Note: For research use only
• Expiration Date: 12 months from date of receipt.

IHC staining of FFPE human tonsil with TIM3 antibody. HIER: boil tissue sections in pH9 10mM Tris with 1mM EDTA for 20 min and allow to cool before testing.

IHC staining of FFPE human lymph node with TIM3 antibody. HIER: boil tissue sections in pH9 10mM Tris with 1mM EDTA for 20 min and allow to cool before testing.

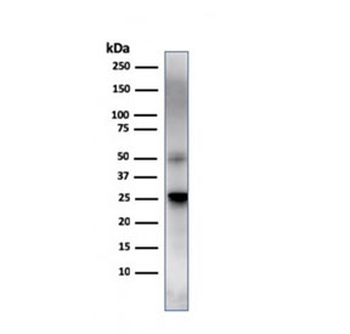

Western blot testing of human spleen lysate with TIM3 antibody. Expected molecular weight: 33-70 kDa depending on glycosylation level.

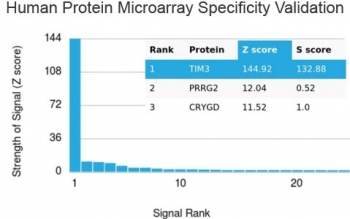

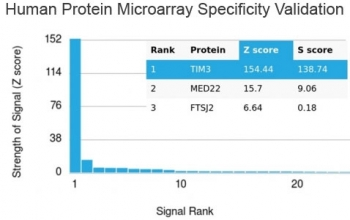

Analysis of HuProt (TM) microarray containing more than 19000 full-length human proteins using TIM3 antibody. These results demonstrate the foremost specificity of the TIM3/4029 mAb. Z- and S- score: The Z-score represents the strength of a signal that an antibody (in combination with a fluorescently-tagged anti-IgG secondary Ab) produces when binding to a particular protein on the HuProt (TM) array. Z-scores are described in units of standard deviations (SD's) above the mean value of all signals generated on that array. If the targets on the HuProt (TM) are arranged in descending order of the Z-score, the S-score is the difference (also in units of SD's) between the Z-scores. The S-score therefore represents the relative target specificity of an Ab to its intended target.

SDS-PAGE analysis of purified, BSA-free TIM3 antibody as confirmation of integrity and purity.
