NIRF Mouse Monoclonal Antibody

SKU: orb763196

Description

Anti-NIRF Antibody (monoclonal, 6B5). Tested in Flow Cytometry, IF, ICC, WB applications. This antibody reacts with Human, Rat.

Research Area

Protein Biochemistry, Signal Transduction

Images & Validation

• Tested Applications: FC, ICC, IF, WB
• Dilution Range: Western blot, 0.25-0.5 μg/ml, Human Immunocytochemistry/Immunofluorescence, 5 μg/ml, Human Flow Cytometry (Fixed), 1-3 μg/1x10^6 cells, Human, Rat
• Reactivity: Human, Rat

Key Properties

• Antibody Type: Primary Antibody
• Host: Mouse
• Clonality: Monoclonal
• Isotype: Mouse IgG2b
• Clone No.: 6B5
• Immunogen: A synthetic peptide corresponding to a sequence at the N-terminus of human NIRF, identical to the related mouse and rat sequences.
• Target: E3 ubiquitin-protein ligase UHRF2
• Molecular Weight: 90 kDa
• Purification: Immunogen affinity purified.
• Conjugation: Unconjugated

Storage & Handling

• Storage: Maintain refrigerated at 2-8°C for up to 2 weeks. For long term storage store at -20°C in small aliquots to prevent freeze-thaw cycles.
• Form/Appearance: Lyophilized
• Buffer/Preservatives: Each vial contains 4 mg Trehalose, 0.9 mg NaCl and 0.2 mg Na2HPO4.
• Concentration: 500 µg/ml
• Expiration Date: 12 months from date of receipt.
• Disclaimer: For research use only

Alternative Names

ubiquitin like with PHD and ring finger domains 2; NIRF; RNF107; TDRD23; URF2; UHRF2

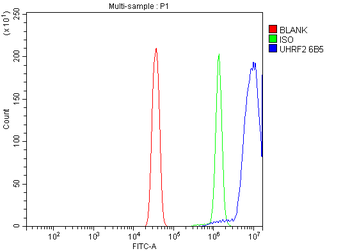

Flow Cytometry analysis of Hela cells using anti-NIRF antibody. Overlay histogram showing Hela cells (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with mouse anti-NIRF Antibody (1 µg/1x10^6 cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-mouse IgG (5-10 µg/1x10^6 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was mouse IgG (1 µg/1x10^6) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.

Flow Cytometry analysis of RH35 cells using anti-NIRF antibody. Overlay histogram showing RH35 cells (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with mouse anti-NIRF Antibody (1 µg/1x10^6 cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-mouse IgG (5-10 µg/1x10^6 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was mouse IgG (1 µg/1x10^6) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.

IF analysis of NIRF using anti-NIRF antibody. NIRF was detected in an immunocytochemical section of Hela cells. Enzyme antigen retrieval was performed using IHC enzyme antigen retrieval reagent for 15 mins. The cells were blocked with 10% goat serum. And then incubated with 5 µg/mL mouse anti-NIRF Antibody overnight at 4°C. DyLight®488 Conjugated Goat Anti-Mouse IgG was used as secondary antibody at 1:100 dilution and incubated for 30 minutes at 37°C. The section was counterstained with DAPI. Visualize using a fluorescence microscope and filter sets appropriate for the label used.

Western blot analysis of NIRF using anti-NIRF antibody. Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions. Lane 1: human HepG2 whole cell lysates, Lane 2: human HT1080 whole cell lysates, Lane 3: human Jurkat whole cell lysates. After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with mouse anti-NIRF antigen affinity purified monoclonal antibody at 0.5 µg/mL overnight at 4°C, then washed with TBS-0.1% Tween 3 times with 5 minutes each and probed with a goat anti-mouse IgG-HRP secondary antibody at a dilution of 1:10000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit with Tanon 5200 system. A specific band was detected for NIRF at approximately 90 kDa. The expected band size for NIRF is at 90 kDa.

Quick Database Links

Gene Symbol

E3 ubiquitin-protein ligase UHRF2

UniProt

Q96PU4
