HLA-DR Antibody (PE)

SKU: orb154521

Description

Mouse monoclonal antibody conjugated to PE which recognizes HLA-DR that belongs to the MHC class II family. It localized in endoplasmic reticulum membrane, golgi apparatus. It binds peptides derived from antigens that access the endocytic route of antigen presenting cells (APC). HLA-DR is a heterodimeric transmembrane protein composed of alpha and beta subunits and plays an important role in the presentation of peptides to CD4+ T lymphocytes.

Images & Validation

• Tested Applications: FC
• Reactivity: Canine, Human, Primate
• Application Notes:
  Flow cytometry: The reagent is designed for analysis of human blood cells using 10 μl reagent / 100 μl of whole blood or 106 cells in a suspension. The content of a vial (1 ml) is sufficient for 100 tests.

Key Properties

• Antibody Type: Primary Antibody
• Clonality: Monoclonal
• Isotype: Mouse IgG2a kappa
• Clone No.: L243
• Immunogen: Human B lymphocytes
• Target: HLA-DR
• Purification: Purified antibody is conjugated with R-phycoerythrin (PE) under optimum conditions. Unconjugated antibody and free fluorochrome are removed by size-exclusion chromatography.
• Conjugation: PE

Storage & Handling

• Storage: Store at 2-8°C. Protect from prolonged exposure to light. Do not freeze.
• Buffer/Preservatives: Stabilizing phosphate buffered saline (PBS), pH 7.4, 15 mM sodium azide
• Disclaimer: For research use only

Flow cytometry multicolor surface staining pattern of human lymphocytes using anti-human CD3 (UCHT1) APC antibody (10 µl reagent / 100 µl of peripheral whole blood) and anti-human HLA-DR (L243) PE antibody (10 µl reagent / 100 µl of peripheral whole blood).

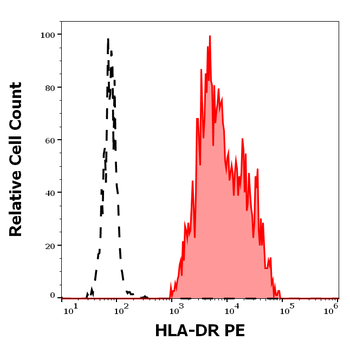

Separation of human CD3 negative HLA-DR positive lymphocytes (red-filled) from neutrophil granulocytes (black-dashed) in flow cytometry analysis (surface staining) of human peripheral whole blood stained using anti-human HLA-DR (L243) PE antibody (10 µl reagent / 100 µl of peripheral whole blood).

Flow cytometry surface staining pattern of human peripheral whole blood stained using anti-human HLA-DR (L243) PE antibody (10 µl reagent / 100 µl of peripheral whole blood).

Quick Database Links

Gene Symbol

HLA-DR

NCBI Gene ID

35
