Streptavidin-Biotin System: A Core Signal Amplification Platform in Immunoassays



In the fields of life science research and in vitro diagnostics, the streptavidin-biotin system stands as an indispensable core technology platform. Leveraging the near-irreversible non-covalent interaction between these two molecules (with a dissociation constant, K_d ≈ 10^-15 M), this system enables efficient signal amplification and precise detection. It is widely applied in immunology, molecular biology, cell imaging, targeted delivery, and numerous other areas.

Its exceptional sensitivity and stability are primarily attributed to the unique properties of its core components—biotin and streptavidin—and their remarkably specific interaction.

Biotin: The Universal Connector

Biotin, also known as Vitamin H, is a water-soluble small molecule vitamin. Its molecular structure features a sulfur-containing thiophene ring, to which a ureido ring and a valeric acid side chain are attached. This compact and stable architecture is fundamental to its function.

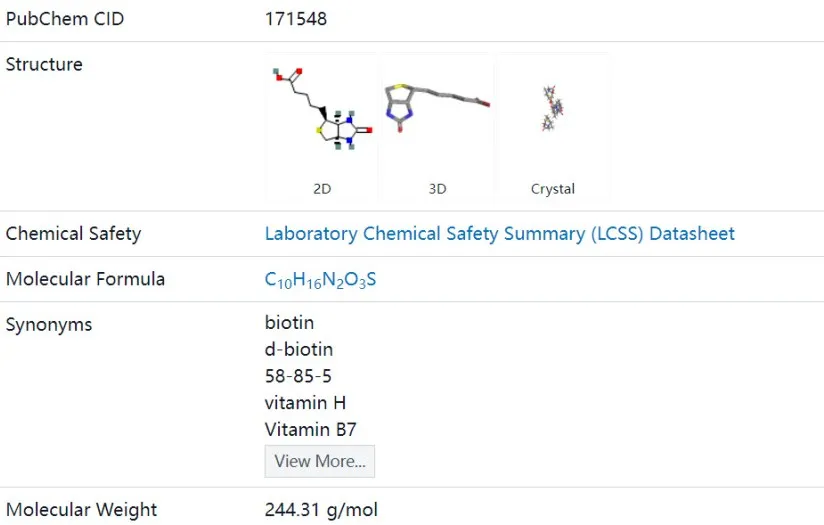

Chemical structure (Source: PubChem)

The carboxyl group (-COOH) of the valeric acid side chain can be readily activated, allowing biotin to be covalently conjugated to various molecules such as proteins (e.g., antibodies), nucleic acids, drugs, or fluorescent dyes, with minimal impact on its ability to bind streptavidin. This makes biotin an ideal "universal tag" or "linking bridge."

Schematic of biotin as a universal tag conjugated to a target molecule

Streptavidin: The High-Performance Capture Protein

Streptavidin (SA), derived from Streptomyces avidinii, is a homotetrameric protein. Each of its four subunits can independently bind one biotin molecule with exceptionally high affinity.

Compared to another biotin-binding protein, avidin (from egg white), streptavidin offers significant advantages:

• Streptavidin has a near-neutral isoelectric point and is non-glycosylated, resulting in extremely low non-specific binding under physiological conditions.
• Avidin is a basic glycoprotein that tends to bind non-specifically to negatively charged structures like cell membranes, leading to higher background signals.

Recombinantly expressed streptavidin can be easily and stably fused or conjugated with a wide range of reporter molecules (e.g., horseradish peroxidase HRP, fluorescein FITC, phycoerythrin PE, alkaline phosphatase AP), creating ready-to-use detection tools.

The Extraordinary Binding Strength

The remarkable affinity of the streptavidin-biotin system arises from the precise steric complementarity and multiple synergistic interactions between biotin and the streptavidin binding pocket:

Each subunit of streptavidin possesses a binding site exquisitely matched to biotin, with a spatial structure highly complementary to it. Upon entry into this site, the molecular surfaces of biotin and streptavidin fit tightly together, establishing multiple interaction points that enable specific recognition and binding.

The association is driven by a combination of non-covalent interactions, including hydrogen bonds, van der Waals forces, and hydrophobic effects. These interactions work cooperatively to form an exceptionally stable complex. For instance, nitrogen atoms in biotin's ureido and imidazolidone rings form hydrogen bonds with amino acid residues in the streptavidin subunit, while biotin's valeric acid side chain engages in hydrophobic interactions with hydrophobic residues lining the binding pocket.

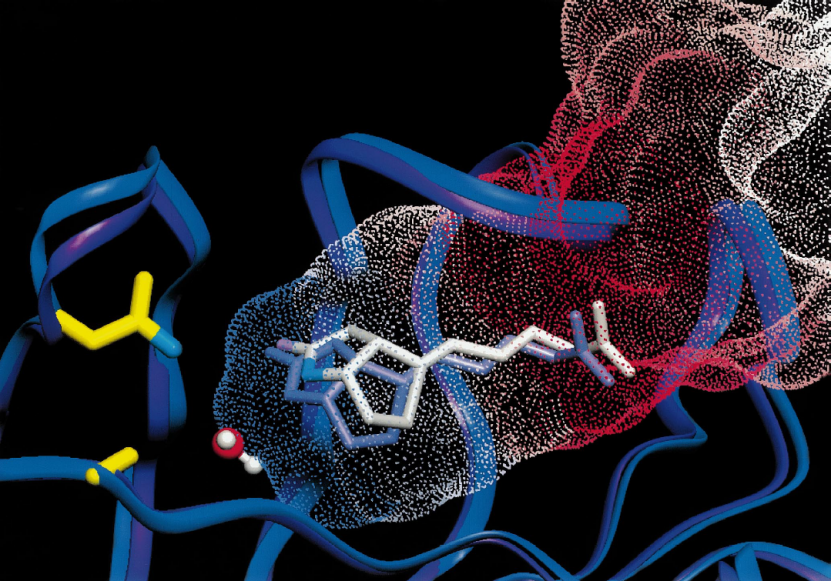

Schematic diagram of the biotin dissociation pathway derived from PMF simulations, superimposed on the D128A crystal structure

Multiple Advantages of the System

Based on the biochemical characteristics above, the streptavidin-biotin system offers numerous advantages for modern immunoassays:

• Signal Amplification: A single biotinylated target molecule can bind multiple labeled streptavidin molecules, significantly enhancing the detection signal for low-abundance targets.
• High Flexibility: Biotin can be conjugated to diverse molecules, and streptavidin is available in various labeled formats, making it adaptable to a wide array of techniques including ELISA, Western Blot (WB), Immunohistochemistry (IHC), Flow Cytometry (FACS), and Fluorescence in Situ Hybridization (FISH).
• Low Background & High Signal-to-Noise Ratio: The low non-specific binding characteristic of streptavidin ensures high specificity and exceptionally clean background in detection assays.
• Robust Stability: The formed complex withstands a broad range of pH, temperature, organic solvents, and protein denaturants, ensuring excellent experimental reproducibility and tolerance.

A Complete One-Stop Detection Solution

Streptavidin, HRP conjugated [orb86224]

The core tool for high-sensitivity chemiluminescent/colorimetric detection. This product is a conjugate of streptavidin and Horseradish Peroxidase (HRP). Utilizing the unparalleled affinity of streptavidin for biotin, it precisely guides the HRP enzyme to any biotinylated target.

Widely used in systems requiring the highest detection sensitivity. HRP catalyzes substrates (TMB, DAB, ECL) to produce robust signals. It is the preferred signal amplification solution for ELISA, WB, and IHC.

Streptavidin-FITC [orb1878761]

A versatile visualization tool for green fluorescence labeling. This product is a conjugate of streptavidin and Fluorescein (FITC). It harnesses the high specificity of the system to deliver a precise green fluorescent signal to biotin-labeled sites.

Primarily applied in immunofluorescence staining (IF/IHC), ELISA, and Flow Cytometry. Its bright green fluorescence (Ex/Em ~494/519 nm) facilitates direct visualization and localization under a fluorescence microscope.

Streptavidin PE [orb2321154]

A gold-standard tool for ultra-bright flow cytometry analysis. This product is a conjugate of streptavidin and R-Phycoerythrin (PE). PE is a large phycobiliprotein with exceptional brightness, efficiently directed to the target via the biotin-streptavidin bridge.

An indispensable reagent in multi-color flow cytometry, especially for detecting cell populations with low surface antigen expression. Its intense orange-red fluorescence (Ex/Em ~565/578 nm) provides an extremely high signal-to-noise ratio.

Streptavidin (Alkaline Phosphatase) [orb1671193]

A stable chromogenic detection tool suitable for multiple platforms. This product is a conjugate of streptavidin and Alkaline Phosphatase (AP). The AP enzyme is anchored to the target, catalyzing substrates to produce stable colorimetric signals.

Widely used in ELISA, WB, and IHC. The AP system is particularly advantageous in systems containing HRP inhibitors (e.g., sodium azide) or in experiments requiring long development times (common substrates include BCIP/NBT, PNPP).

Comprehensive Complementary Products

Biorbyt also offers an extensive range of supporting detection reagents:

• Enzyme-Labeled Antibodies: For ultra-high sensitivity chemiluminescent/colorimetric signal amplification.
  • HRP conjugated: Ideal for chemiluminescent/colorimetric detection in ELISA, Western Blot, and IHC.
  • AP conjugated: Suitable for ELISA, IHC, and membrane-based assays, particularly excelling with specific chromogenic substrates.
• Fluorophore-Labeled Antibodies: For multi-color imaging and flow cytometry analysis.
  • Classic Fluorophores: Including FITC (green), PE (bright orange-red), and APC (far-red).
  • Next-Generation Dyes: Such as Alexa Fluor® series and Cy® series, providing enhanced photostability and fluorescence intensity.
• Biotinylated Antibodies: A vast selection covering thousands of targets, including primary antibodies and multi-species secondary antibodies (e.g., Biotinylated Goat Anti-Mouse IgG).

References

1. https://www.sciencedirect.com/science/article/abs/pii/S1093326317300943
2. Stayton PS, Freitag S, Klumb LA, Chilkoti A, Chu V, Penzotti JE, To R, Hyre D, Le Trong I, Lybrand TP, Stenkamp RE. Streptavidin-biotin binding energetics. Biomol Eng. 1999 Dec 31;16(1-4):39-44. doi: 10.1016/s1050-3862(99)00042-x. PMID: 10796983.
