CD31/PECAM1 Antibody (monoclonal, 2D4)

SKU: orb654278

Description

Anti-CD31/PECAM1 Antibody (monoclonal, 2D4). Tested in IHC, IHC-F, WB applications. This antibody reacts with Human.

Images & Validation

• Tested Applications: IHC, IHC-Fr, WB
• Reactivity: Human
• Application Notes:
  Western blot, 0.1-0.5μg/ml, Human Immunohistochemistry (Paraffin-embedded Section), 0.5-1μg/ml, Human Immunohistochemistry (Frozen Section), 0.5-1μg/ml, Human. Add 0.2ml of distilled water will yield a concentration of 500ug/ml

Key Properties

• Antibody Type: Primary Antibody
• Host: Mouse
• Clonality: Monoclonal
• Isotype: Mouse IgG2b
• Clone No.: 2D4
• Immunogen: E.coli-derived human CD31 recombinant protein (Position: Q28-G382). Human CD31 shares 65% and 68% amino acid (aa) sequences identity with mouse and rat CD31, respectively.
• Molecular Weight: 130 kDa
• Purification: Immunogen affinity purified.
• Conjugation: Unconjugated

Storage & Handling

• Storage: Maintain refrigerated at 2-8°C for up to 2 weeks. For long term storage store at -20°C in small aliquots to prevent freeze-thaw cycles.
• Form/Appearance: Lyophilized
• Concentration: Adding 0.2 ml of distilled water will yield a concentration of 500 μg/ml.
• Disclaimer: For research use only

Alternative Names

Adhesion molecule antibody; CD31 antibody; CD31 antigen antibody; CD31 EndoCAM antibody; Endocam antibody; FLJ34100 antibody; FLJ58394 antibody; GPIIA antibody; GPIIA' antibody; PECA1 antibody; PECA1_HUMAN antibody; Pecam 1 antibody; PECAM 1 CD31 EndoCAM antibody; PECAM antibody; PECAM-1 antibody; Pecam1 antibody; Platelet endothelial cell adhesion molecule antibody; Platelet/endothelial cell adhesion molecule 1 antibody; Platelet/endothelial cell adhesion molecule antibody

IHC analysis of CD31/PECAM1 using anti-CD31/PECAM1 antibody. CD31/PECAM1 was detected in frozen section of human placenta tissue. The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1 µg/ml mouse anti-CD31/PECAM1 Antibody overnight at 4°C. Biotinylated goat anti-mouse IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) with DAB as the chromogen.

IHC analysis of CD31/PECAM1 using anti-CD31/PECAM1 antibody. CD31/PECAM1 was detected in paraffin-embedded section of human lung cancer tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1 µg/ml mouse anti-CD31/PECAM1 Antibody overnight at 4°C. Biotinylated goat anti-mouse IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) with DAB as the chromogen.

IHC analysis of CD31/PECAM1 using anti-CD31/PECAM1 antibody. CD31/PECAM1 was detected in paraffin-embedded section of human lung cancer tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1 µg/ml mouse anti-CD31/PECAM1 Antibody overnight at 4°C. Biotinylated goat anti-mouse IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) with DAB as the chromogen.

IHC analysis of CD31/PECAM1 using anti-CD31/PECAM1 antibody. CD31/PECAM1 was detected in paraffin-embedded section of human mammary cancer tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1 µg/ml mouse anti-CD31/PECAM1 Antibody overnight at 4°C. Biotinylated goat anti-mouse IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) with DAB as the chromogen.

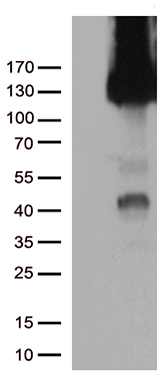

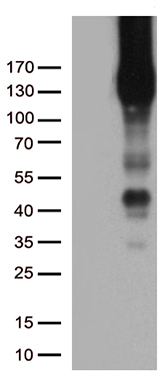

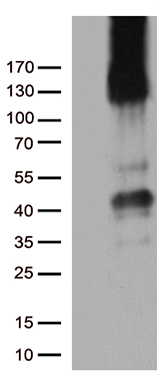

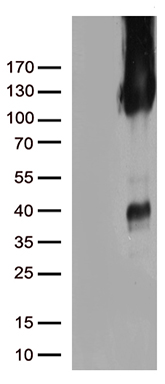

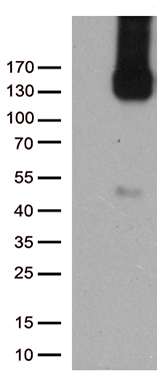

Western blot analysis of CD31/PECAM1 using anti-CD31/PECAM1 antibody. Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50 ug of sample under reducing conditions. Lane 1: human Jurkat whole cell lysates; Lane 2: human placenta tissue lysates. After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with mouse anti-CD31/PECAM1 antigen affinity purified monoclonal antibody at 0.5 µg/mL overnight at 4°C, then washed with TBS-0.1% Tween 3 times with 5 minutes each and probed with a goat anti-mouse IgG-HRP secondary antibody at a dilution of 1:10000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit with Tanon 5200 system. A specific band was detected for CD31/PECAM1 at approximately 130 KD. The expected band size for CD31/PECAM1 is at 130 KD.

Quick Database Links

UniProt

P16284
