mtTFA TFAM Mouse Monoclonal Antibody

SKU: orb610917

Description

mtTFA TFAM Mouse Monoclonal Antibody

Research Area

Signal Transduction

Images & Validation

• Tested Applications: FC, IHC, WB
• Dilution Range: Western blot, 1-2μg/ml, Human Immunohistochemistry (Paraffin-embedded Section), 0.5-1μg/ml, Human Flow Cytometry (Fixed), 1-3μg/1x10^6 cells, Human
• Reactivity: Human

Key Properties

• Antibody Type: Primary Antibody
• Host: Mouse
• Clonality: Monoclonal
• Isotype: Mouse IgG2b
• Clone No.: 4D9
• Immunogen: A synthetic peptide corresponding to a sequence at the N-terminus of human mtTFA, different from the related mouse and rat sequences by five amino acids.
• Target: Transcription factor A, mitochondrial
• Molecular Weight: 40 kDa
• Purification: Immunogen affinity purified.
• Conjugation: Unconjugated

Storage & Handling

• Storage: Maintain refrigerated at 2-8°C for up to 2 weeks. For long term storage store at -20°C in small aliquots to prevent freeze-thaw cycles.
• Form/Appearance: Lyophilized
• Buffer/Preservatives: Each vial contains 4mg Trehalose, 0.9mg NaCl, 0.2mg Na2HPO4, 0.05mg NaN3.
• Concentration: Adding 0.2 ml of distilled water will yield a concentration of 500 μg/ml.
• Expiration Date: 12 months from date of receipt.
• Disclaimer: For research use only

Alternative Names

Cell and organelle markers; Mitochondria Marker; Mitochondrial Marker; Mitochondrion Marker; MtTF1; mtTFA; TCF 6; TCF6; TCF6L1; TCF6L2; TCF6L3; TFAM; Transcription factor 6; Transcription factor 6 like 2

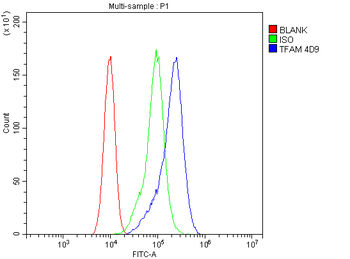

Flow Cytometry analysis of CACO-2 cells using anti-FAM antibody. Overlay histogram showing CACO-2 cells (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with mouse anti-FAM Antibody (1 µg/1x10^6 cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-mouse IgG (5-10 µg/1x10^6 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was mouse IgG (1 µg/1x10^6) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.

IHC analysis of TFAM using anti-TFAM antibody. TFAM was detected in paraffin-embedded section of human Breast cancer tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1 µg/ml mouse anti-TFAM Antibody overnight at 4°C. Biotinylated goat anti-mouse IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) with DAB as the chromogen.

IHC analysis of TFAM using anti-TFAM antibody. TFAM was detected in paraffin-embedded section of human rectum cancer tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1 µg/ml mouse anti-TFAM Antibody overnight at 4°C. Biotinylated goat anti-mouse IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) with DAB as the chromogen.

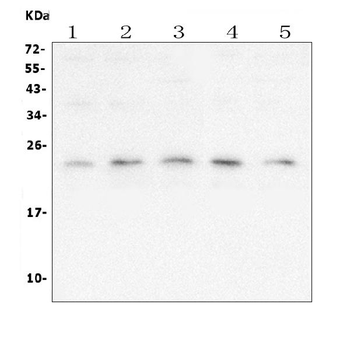

Western blot analysis of TFAM using anti ZO-1 antibody. Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50 ug of sample under reducing conditions. Lane 1: human HEK293 tissue lysates, Lane 2: human K562 whole cell lysates, Lane 3: human Caco-2 whole cell lysates, Lane 4: human Raji whole cell lysates, Lane 5: human A549 whole cell lysates, After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with mouse anti-TFAM antigen affinity purified polyclonal antibody at 0.5 µg/mL overnight at 4°C, then washed with TBS-0.1% Tween 3 times with 5 minutes each and probed with a goat anti-mouse IgG-HRP secondary antibody at a dilution of 1:10000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit with Tanon 5200 system. A specific band was detected for TFAM at approximately 40 KD. The expected band size for TFAM is at 40 KD.

Quick Database Links

Gene Symbol

Transcription factor A, mitochondrial

UniProt

Q00059
